High energy magnesium alloy semi-solid

Injection molding machine

Home > Products > Lightweight expert
Two plate type
Three plate type

Two plate type

Three plate type

Build a new generation of the futurelightweight manufacturing technology
Efficiently Economize On Energy
Integrating material modification, equipment, technology and automation
A one-stop supplier in the field of magnesium alloy semi-solid molding
Efficient
Stablize
Energy saving
Precision
Safety

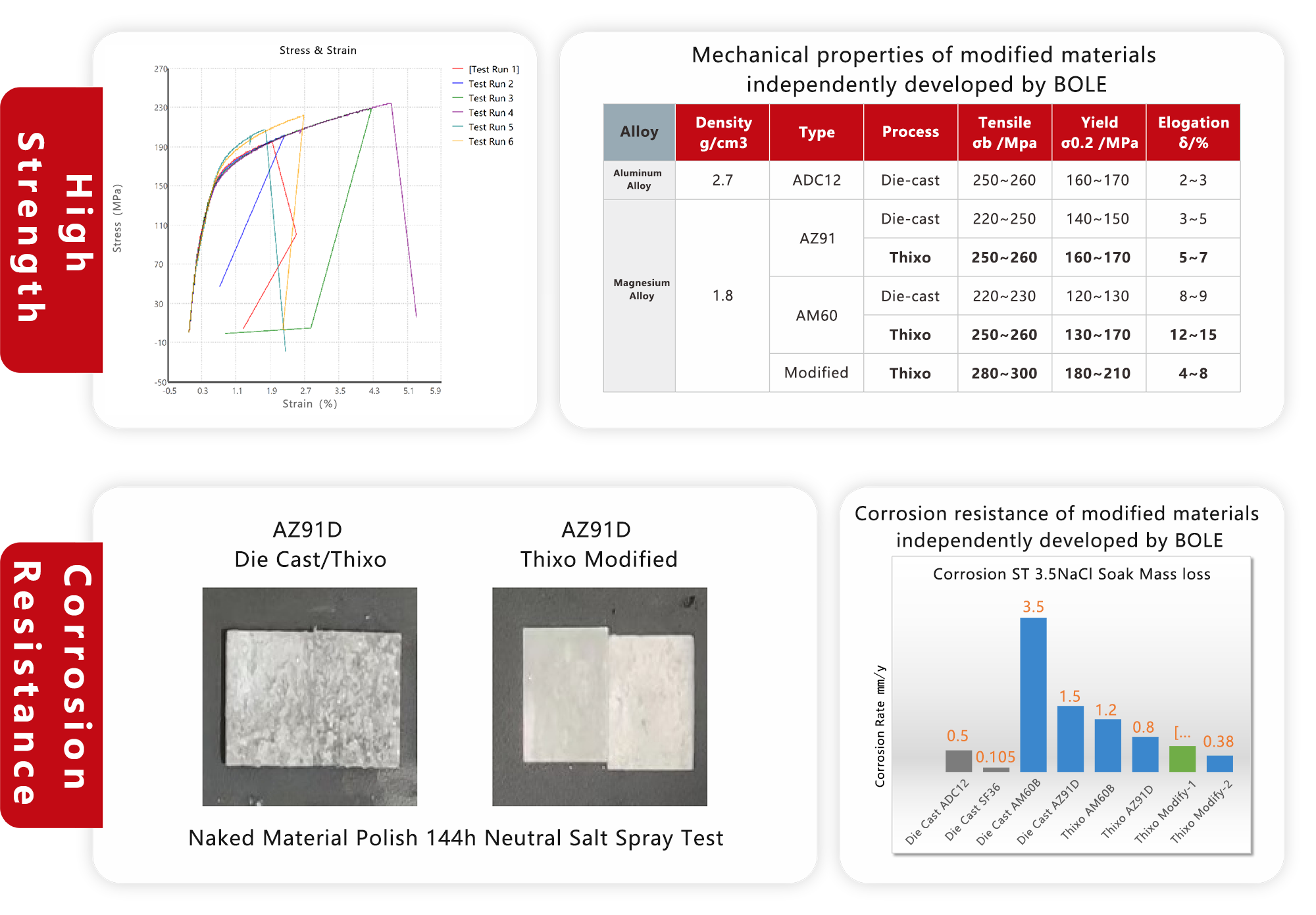

Three major pain points before magnesium alloys
Is toughness enough?
The performance level of traditional die-cast magnesium is lower than that of aluminum alloy; there is little room for improvement in technology and materials.
Can’t be “big”
Traditional die-casting: unsafe, not environmentally friendly, easy to oxidize, with many inclusion defects, and high porosity;
Traditional die-casting: unsafe, not environmentally friendly, easy to oxidize, with many inclusion defects, and high porosity.
Poor corrosion resistance
In acidic, neutral, and weakly alkaline environments, the oxide film on the surface of magnesium alloys is unstable, resulting in parts that are not resistant to corrosion.

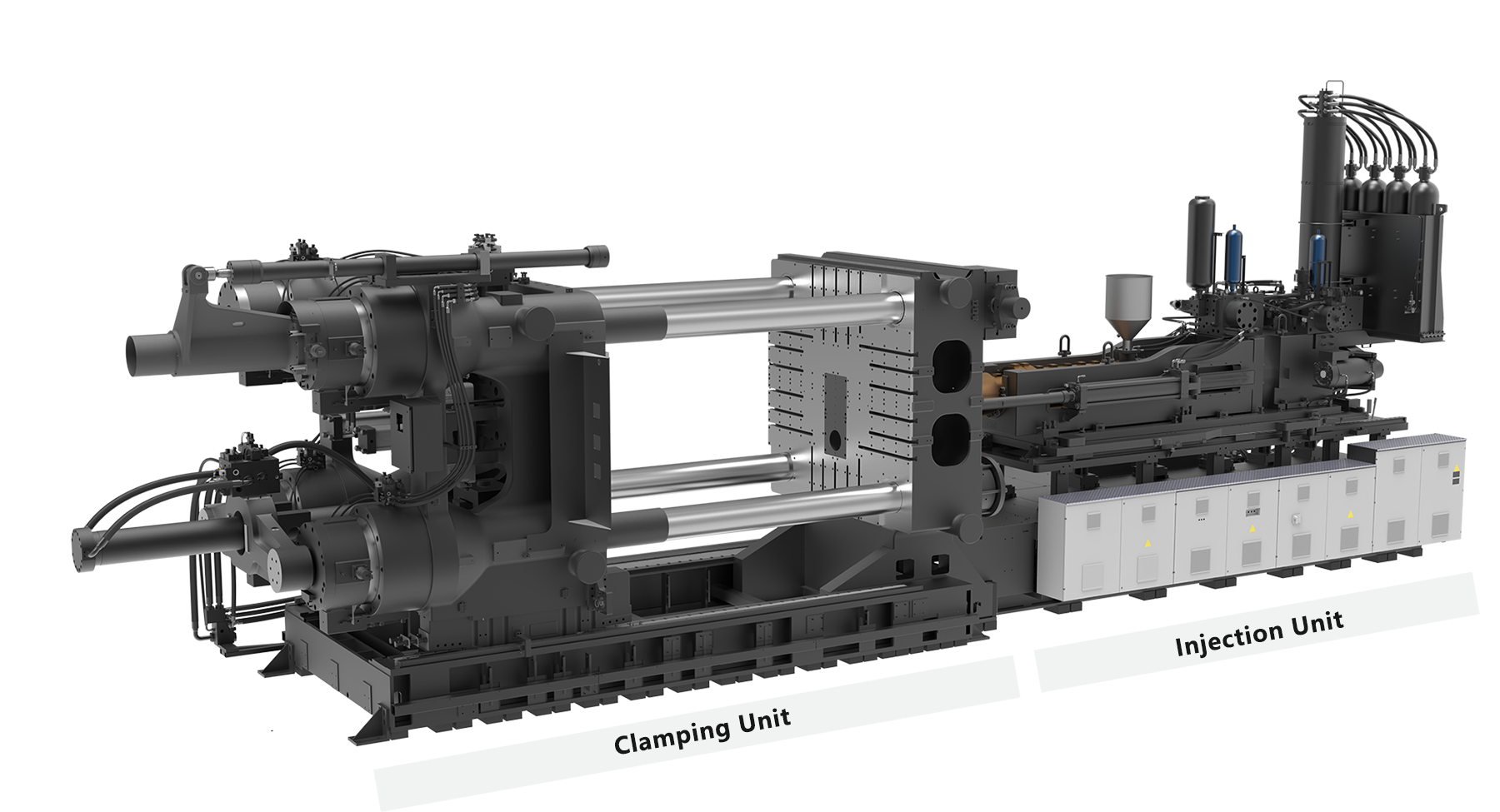

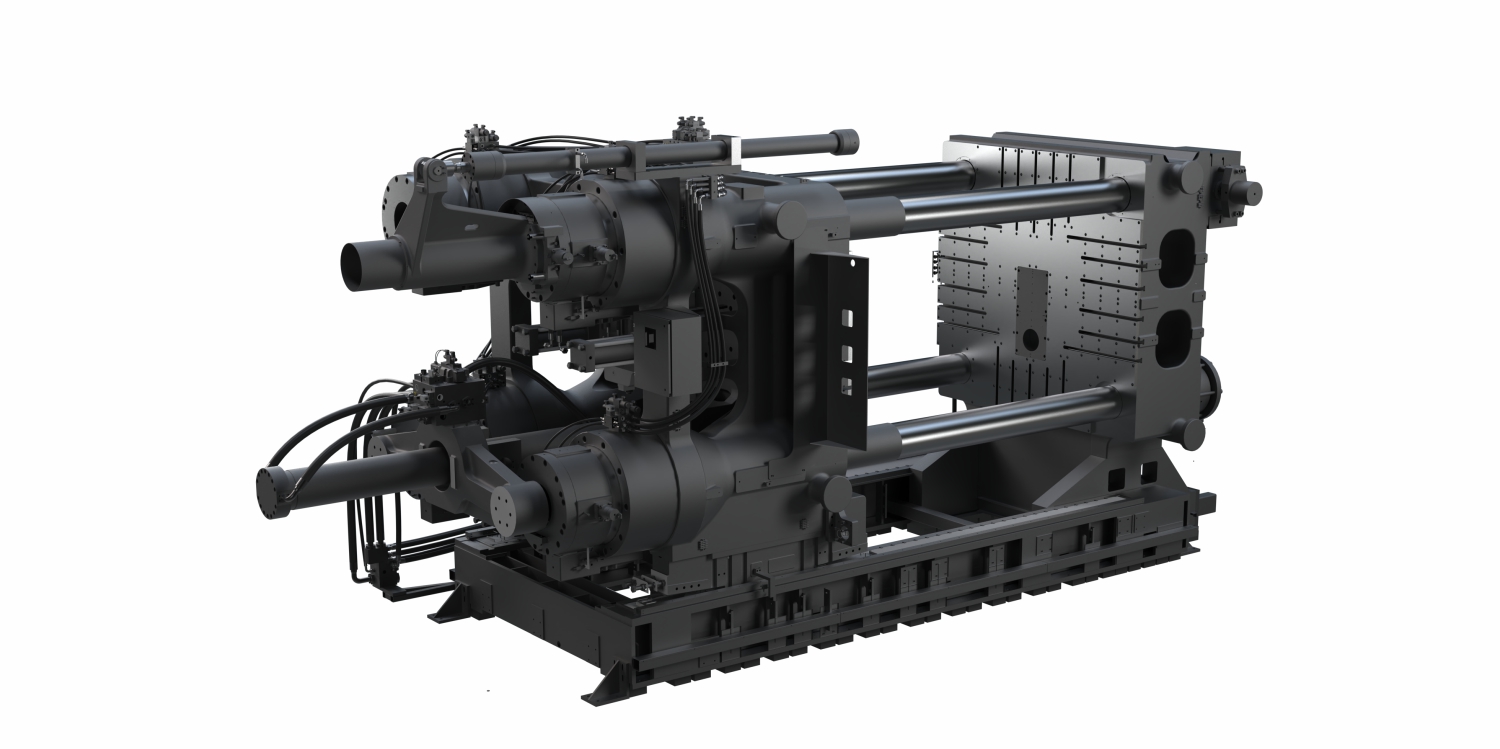

Ultra-large magnesium alloy semi-solid injection molding machine


  • Two-plate clamping structure

  • Large injection volume

  • Key heating control algorithm

It occupies a small area and is more suitable for super-large equipment! Two-plate clamping structure, four-cylinder flexible independent control, better mold adaptability, excellent performance, occupying 20% less area.

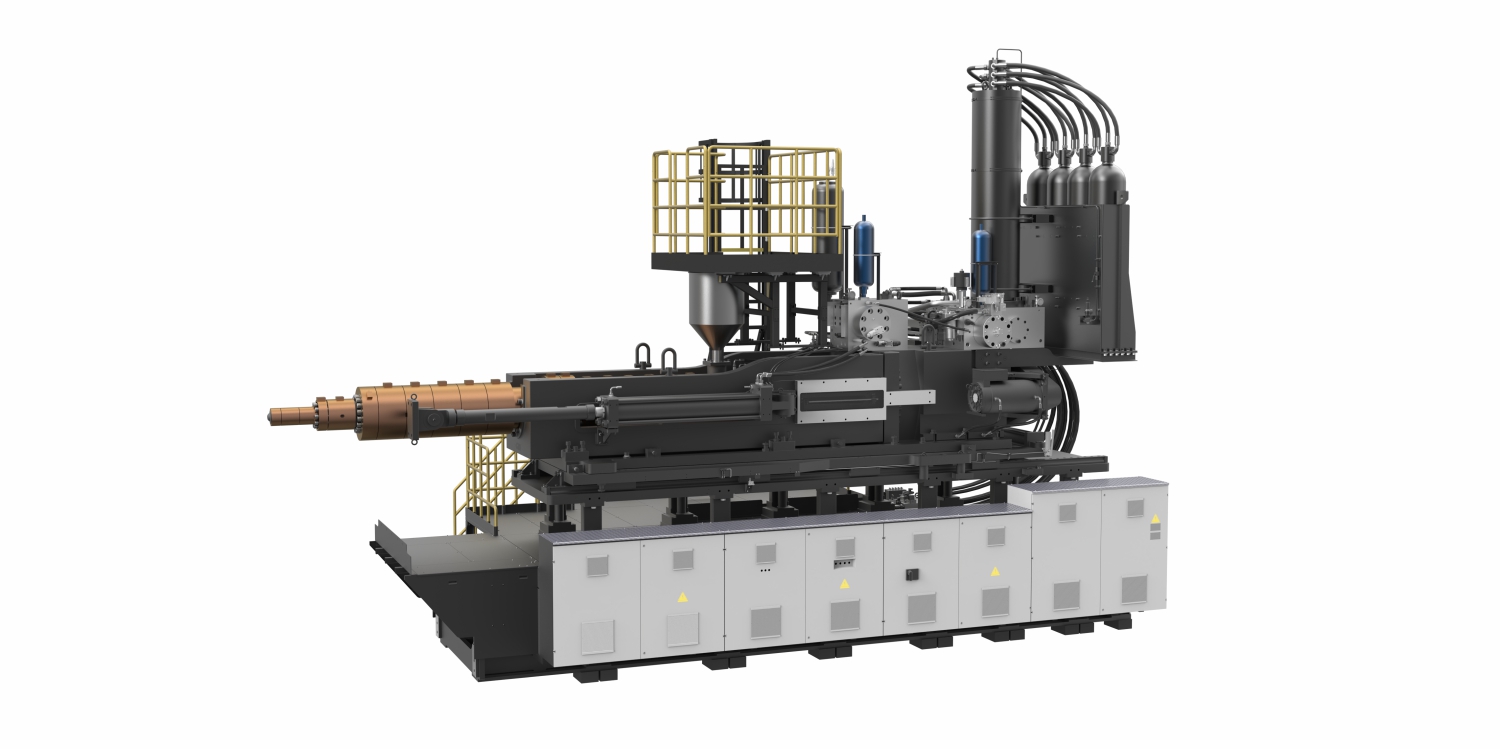

The screw diameter is 170mm and the length exceeds 4m, breaking through the material manufacturing bottleneck. The maximum injection output is >17kg. The screw is made of super heat-resistant and high-strength material with a CO/M0 content of over 14Wt.%, which can cope with high-temperature environments above 650°C, ensuring that it remains as strong as ever after long-term use.

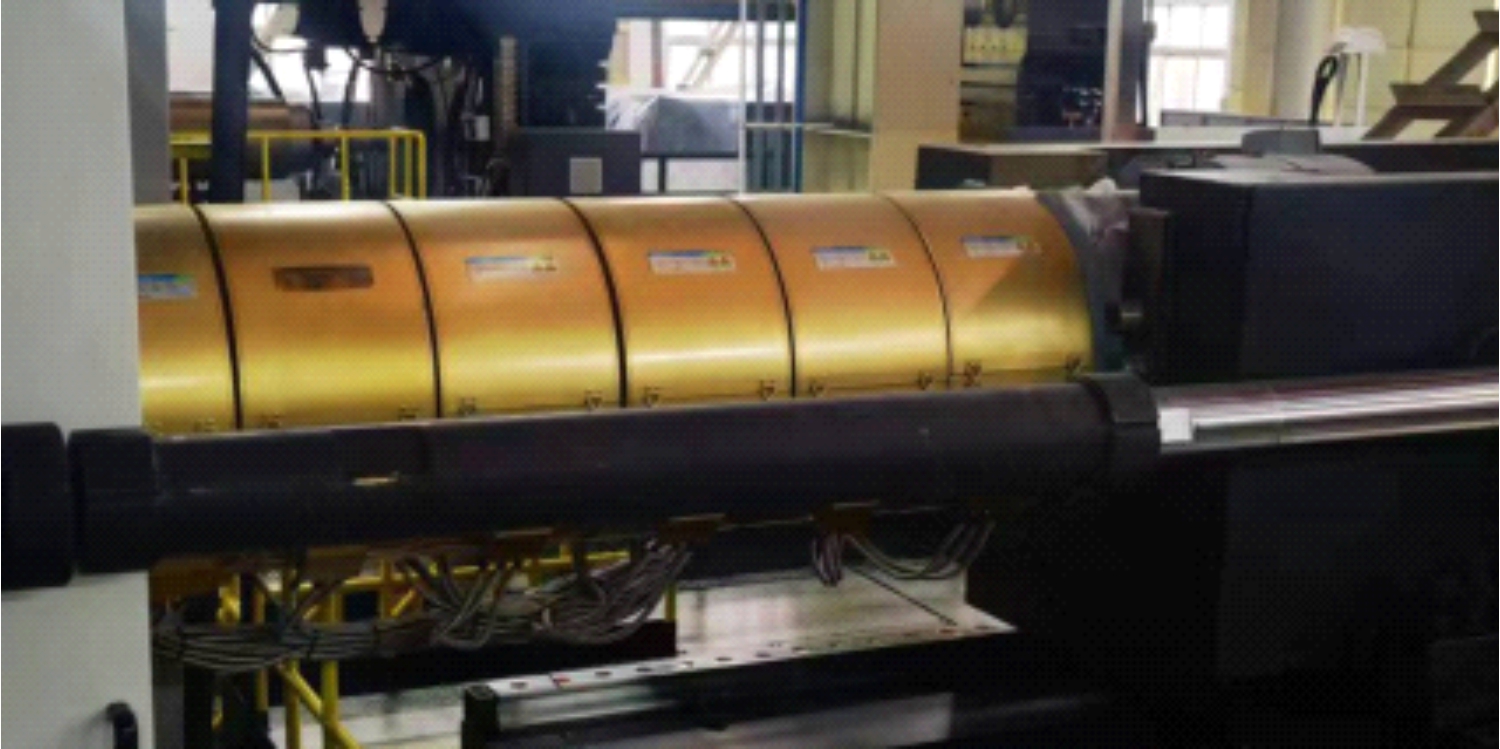

Innovative and efficient composite heating scheme, high heating power, combined with self-developed pre-response temperature compensation control system, ensure the continuous stability of magnesium alloy semi-solid melt transformation under large production volumes.
Let semi-solid technology be redefined
Magnesium alloy high-density "large integrated structural parts"
+
+
+
+
+
+
+
+
+
+

Application in industry

Magnesium alloy semi-solid mold testing center
